Dartboard widget. More...

#include <CutWidgets.h>

Inheritance diagram for QeDartBoard:

Public Slots
void	setCurrentAlt (double newValue)
	Sets the value of the current altitude property.

void	setCurrentAz (double newValue)
	Sets the value of the current azimuth property.

void	setTargetAlt (double newValue)
	Sets the value of the target altitude property.

void	setTargetAz (double newValue)
	Sets the value of the target azimuth property.

void	setTelescopeLat (double newValue)
	Sets the value of the latitude of the telescope.

void	setTelescopeLong (double newValue)
	Sets the value of the longitude of the telescope.

void	setWindDirection (double newValue)
	Sets the value of the latitude of the telescope.

Public Slots inherited from QeRadialItemPlot
void	setIsClockwise (bool newValue)
	Changes the direction of radial values distribution.

void	setDegRadNumericDisplay (bool newValue)
	Changes the units used to display the values.

void	setShowGrid (bool newValue)
	Changes the grid visibility indicator.

void	updateBackground ()
	Updates the m_backgroundUpdateNeeded internal flag to signal a significant change was detect, and the cache needs to be rebuild.

Signals
void	currentAltChanged (double newValue)
	Indicates that the current altitude value has changed.

void	currentAzChanged (double newValue)
	Indicates that the current azimuth value has changed.

void	targetAltChanged (double newValue)
	Indicates that the target altitude value has changed.

void	targetAzChanged (double newValue)
	Indicates that the target azimuth value has changed.

void	telescopeLatChanged (double newValue)
	Indicates that telescope latitude has changed.

void	telescopeLongChanged (double newValue)
	Indicates that telescope longitude has changed.

void	windDirectionChanged (double newValue)
	Indicates that the wind direction has changed.

Signals inherited from QeRadialItemPlot
void	isClockwiseChanged (bool newValue)
	Indicates that the direction of values distribution chanegd.

void	degRadNumericDisplayTriggered (bool newValue)
	Indicates that the numerical unit representation has changed.

void	showGridChanged (bool newValue)
	Indicates that the numerical unit representation has changed.

Public Member Functions
	QeDartBoard (QWidget *parent=Q_NULLPTR)
	Constructor that is used to set a parent relationship with.

double	getCurrentAlt ()
	Gets the value of the current altitude the widget has.

double	getCurrentAz ()
	Gets the value of the current azimuth the widget has.

double	getTargetAlt ()
	Gets the value of the target altitude the widget has.

double	getTargetAz ()
	Gets the value of the target azimuth the widget has.

double	getTelescopeLat ()
	Gets the value of the telescope latitude the widget has.

double	getTelescopeLong ()
	Gets the value of the telescope longitude the widget has.

double	getWindDirection ()
	Gets the value of the wind direction the widget has.

Public Member Functions inherited from QeRadialItemPlot
	QeRadialItemPlot (QWidget *parent=Q_NULLPTR)
	Constructor that is used to set a parent relationship with.

bool	getIsClockwise ()
	Gets the value the flag that determines if radial values change clockwise or counterclockwise.

bool	getDegRadNumericDisplay ()
	Returns the true if using radians to display numerical values.

bool	getShowGrid ()
	Returns the true if grid is displayed.

QPixmap	getBackgroundPixmap ()
	Returns background QPixmap that is stored in unique ptr.

Protected Member Functions
void	paintEvent (QPaintEvent *event) override
	Overrides QWidget::paintEvent to implement its own rendering instructions.

void	paintDartBoard (QPainter *painter) override
	Uses a QPainter to draw the dartboard (mostly static) background.

Protected Member Functions inherited from QeRadialItemPlot
void	changeEvent (QEvent *event) override
	Overrides QWidget::changeEvent to catch when certain QWidget's properties has changed.

void	resizeEvent (QResizeEvent *event) override
	Overrides QWidget::resizeEvent to catch when the size has changed.

void	cacheBackground (QPainter *painter)
	Stores in a pointer the new background cache.

void	setDirectionIndicatorSigns (QString vertical, QString horizontal)
	Sets indicators' symbols for directions arrows painted in top right corner.

void	setDirectionIndicatorVisible (bool isVisible)
	Sets directions indicator (painted in the top right corner of the widget) visible.

void	drawValues (QPainter *painter)
	Draws numeric values around the radial plot in a desired direction (eiher clockwise or counterclockwise)

Properties
double	currentAlt
	Altitude coordinate of the current position in radians.

double	currentAz
	Azimuth coordinate of the current position in radians.

double	targetAlt
	Altitude coordinate of the target position in radians.

double	targetAz
	Azimuth coordinate of the target position in radians.

double	telescopeLat
	Telescope Latitude position – currently not used.

double	telescopeLong
	Telescope Longitude position – currently not used.

double	windDirection
	Wind direction – currently not used.

Properties inherited from QeRadialItemPlot
bool	isClockwise
	Flag that determines if radial coordinates of the plot change clockwise (true) or counterclockwise (false) The property is true by default (clockwise)

bool	degRadNumericDisplay
	Degrees/Radians numerical indicators representation (0 - Degrees, 1 - Radians)

bool	showGrid
	Show/hide grid.

Detailed Description

Dartboard widget.

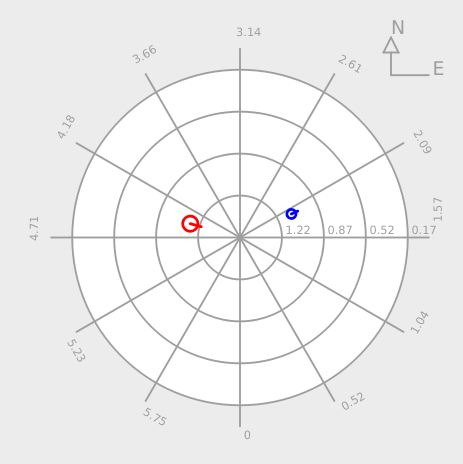

It renders a target and a current position in an Alt/Az radial view.

The Dartboard is a custom widget that renders in radial coordinates the Altitude and Azimuth of two positions: the target, and the current.

Values in the radial axis range from Pi/2 radians at the center, to 0 at the outer border. Values in the angular axis start with 0 radians from the South position, and increase starting counter-clockwise up to 2*Pi radians.

The target is rendered in red, and the current position in blue.

Todo

Update to Control GUI Guidelines colors.

Implement wind direction display

Implement sky visibility according to telescope longitude, latitude and time.

Constructor & Destructor Documentation

◆ QeDartBoard()

QeDartBoard::QeDartBoard ( QWidget * parent = Q_NULLPTR )

explicit

Constructor that is used to set a parent relationship with.

Parameters

parent QWidget used as parent for this QeDartBoard.

Member Function Documentation

◆ currentAltChanged

void QeDartBoard::currentAltChanged ( double newValue )

signal

Indicates that the current altitude value has changed.

Parameters

newValue New value for the current altitude in radians.

◆ currentAzChanged

void QeDartBoard::currentAzChanged ( double newValue )

signal

Indicates that the current azimuth value has changed.

Parameters

newValue New value for the current azimuth in radians, 0 is south, increases eastward.

◆ getCurrentAlt()

double QeDartBoard::getCurrentAlt ( )

Gets the value of the current altitude the widget has.

Returns: current altitude in radians

◆ getCurrentAz()

double QeDartBoard::getCurrentAz ( )

Gets the value of the current azimuth the widget has.

Returns: current azimuth in radians, 0 is south, increases eastward.

◆ getTargetAlt()

double QeDartBoard::getTargetAlt ( )

Gets the value of the target altitude the widget has.

Returns: target altitude in radians

◆ getTargetAz()

double QeDartBoard::getTargetAz ( )

Gets the value of the target azimuth the widget has.

Returns: target azimuth in radians, 0 is south, increases eastward.

◆ getTelescopeLat()

double QeDartBoard::getTelescopeLat ( )

Gets the value of the telescope latitude the widget has.

Note: not in use

Returns: telescope latitude in radians.

◆ getTelescopeLong()

double QeDartBoard::getTelescopeLong ( )

Gets the value of the telescope longitude the widget has.

Note: not in use

Returns: telescope latitude in radians

◆ getWindDirection()

double QeDartBoard::getWindDirection ( )

Gets the value of the wind direction the widget has.

Note: not in use

Returns: wind direction latitude in radians, 0 is south, increases eastward.

◆ paintDartBoard()

void QeDartBoard::paintDartBoard ( QPainter * painter )

overrideprotectedvirtual

Uses a QPainter to draw the dartboard (mostly static) background.

Parameters

painter QPainter used to perform the raster instructions on.

Reimplemented from QeRadialItemPlot.

◆ paintEvent()

void QeDartBoard::paintEvent ( QPaintEvent * event )

overrideprotected

Overrides QWidget::paintEvent to implement its own rendering instructions.

This method implements most of the rendering logic.

Parameters

event QPaintEvent, ignored.

◆ setCurrentAlt

void QeDartBoard::setCurrentAlt ( double newValue )

slot

Sets the value of the current altitude property.

Parameters

newValue Altitude in radians

◆ setCurrentAz

void QeDartBoard::setCurrentAz ( double newValue )

slot

Sets the value of the current azimuth property.

Parameters

newValue Azimuth in radians, 0 is south, increases eastward.

◆ setTargetAlt

void QeDartBoard::setTargetAlt ( double newValue )

slot

Sets the value of the target altitude property.

Parameters

newValue Altitude in radians

◆ setTargetAz

void QeDartBoard::setTargetAz ( double newValue )

slot

Sets the value of the target azimuth property.

Parameters

newValue Azimuth in radians, 0 is south, increases eastward.

◆ setTelescopeLat

void QeDartBoard::setTelescopeLat ( double newValue )

slot

Sets the value of the latitude of the telescope.

Note: Not in use

Parameters

newValue Latitude in radians

◆ setTelescopeLong

void QeDartBoard::setTelescopeLong ( double newValue )

slot

Sets the value of the longitude of the telescope.

Note: Not in use

Parameters

newValue Longitude in radians

◆ setWindDirection

void QeDartBoard::setWindDirection ( double newValue )

slot

Sets the value of the latitude of the telescope.

Note: Not in use

Parameters

newValue Direction in radians, 0 is south, increases eastward.

◆ targetAltChanged

void QeDartBoard::targetAltChanged ( double newValue )

signal

Indicates that the target altitude value has changed.

Parameters

newValue New value for the target altitude in radians.

◆ targetAzChanged

void QeDartBoard::targetAzChanged ( double newValue )

signal

Indicates that the target azimuth value has changed.

Parameters

newValue New value for the target azimuth in radians, 0 is south, increases eastward.

◆ telescopeLatChanged

void QeDartBoard::telescopeLatChanged ( double newValue )

signal

Indicates that telescope latitude has changed.

Note: Not in use

Parameters

newValue New value telescope latitude.

◆ telescopeLongChanged

void QeDartBoard::telescopeLongChanged ( double newValue )

signal

Indicates that telescope longitude has changed.

Note: Not in use

Parameters

newValue New value telescope longitude.

◆ windDirectionChanged

void QeDartBoard::windDirectionChanged ( double newValue )

signal

Indicates that the wind direction has changed.

Note: Not in use

Parameters

newValue New value for the wind direction in radians, 0 is south, increases eastward.

Property Documentation

◆ currentAlt

double QeDartBoard::currentAlt

readwrite

Altitude coordinate of the current position in radians.

Accessors:: getCurrentAlt(), setCurrentAlt(double)

◆ currentAz

double QeDartBoard::currentAz

readwrite

Azimuth coordinate of the current position in radians.

Accessors:: getCurrentAz(), setCurrentAz(double)

◆ targetAlt

double QeDartBoard::targetAlt

readwrite

Altitude coordinate of the target position in radians.

Accessors:: getTargetAlt(), setTargetAlt(double)

◆ targetAz

double QeDartBoard::targetAz

readwrite

Azimuth coordinate of the target position in radians.

Accessors:: getTargetAz(), setTargetAz(double)

◆ telescopeLat

double QeDartBoard::telescopeLat

readwrite

Telescope Latitude position – currently not used.

Accessors:: getTelescopeLat(), setTelescopeLat(double)

◆ telescopeLong

double QeDartBoard::telescopeLong

readwrite

Telescope Longitude position – currently not used.

Accessors:: getTelescopeLong(), setTelescopeLong()

◆ windDirection

double QeDartBoard::windDirection

readwrite

Wind direction – currently not used.

Accessors:: getWindDirection(), setWindDirection()

The documentation for this class was generated from the following files:

widgets/widgets/src/include/elt/cut/widgets/widgets/QeDartBoard.hpp
widgets/widgets/src/QeDartBoard.cpp

Public Slots

Signals

Public Member Functions

Protected Member Functions

Properties

Detailed Description

Constructor & Destructor Documentation

◆ QeDartBoard()

Member Function Documentation

◆ currentAltChanged

◆ currentAzChanged

◆ getCurrentAlt()

◆ getCurrentAz()

◆ getTargetAlt()

◆ getTargetAz()

◆ getTelescopeLat()

◆ getTelescopeLong()

◆ getWindDirection()

◆ paintDartBoard()

◆ paintEvent()

◆ setCurrentAlt

◆ setCurrentAz

◆ setTargetAlt

◆ setTargetAz

◆ setTelescopeLat

◆ setTelescopeLong

◆ setWindDirection

◆ targetAltChanged

◆ targetAzChanged

◆ telescopeLatChanged

◆ telescopeLongChanged

◆ windDirectionChanged

Property Documentation

◆ currentAlt

◆ currentAz

◆ targetAlt

◆ targetAz

◆ telescopeLat

◆ telescopeLong

◆ windDirection
