taurus.taurusprefocalstation.TaurusPreFocalStation Class Reference

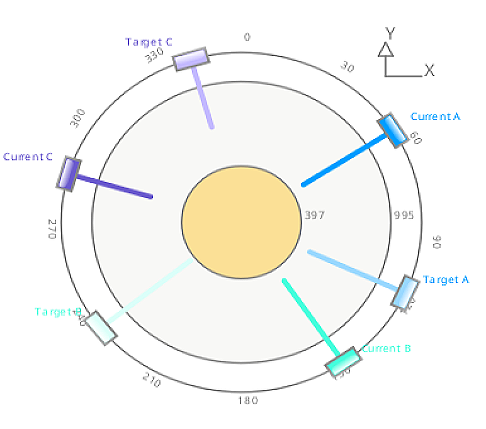

Taurus based widget for QePreFocalStation, capable of connecting through taurus plugins to control system and services. More...

Inheritance diagram for taurus.taurusprefocalstation.TaurusPreFocalStation:

Public Member Functions
	__init__ (self, Qt.QWidget parent=None, designMode=False)
	Initializes the object with defaults values, and obtains the appropiate controller.
TaurusBaseController	controller (self)
	Returns the controller object for this widget.
	isReadOnly (self)
	This widget is only capable of displaying data, but not writing.
	setModel (self, m, key=MLIST)
	Setter for the model property.
	getModelIndex (self)
	Getter for the modelIndex property.
	setModelIndex (self, modelIndex)
	Getter for the modelIndex property.
	resetModelIndex (self)
	Getter for the bgRole property.
	getBgRole (self)
	Getter for the bgRole property.
	setBgRole (self, str bgRole)
	Setter for the bgRole property.
	resetBgRole (self)
	Resets to the default value the bgRole property.
	getFgRole (self)
	Getter for the fgRole property.
	setFgRole (self, str fgRole)
	Setter for the fgRole property.
	resetFgRole (self)
	Resets to the default value the fgRole property.
	getModelObj (self, *, key=MLIST)
	Returns the taurus model object associated to the given key or None if no taurus model is associated.
	getModelType (self, *, key=MLIST)
	Invokes base class method with MLIST key.
	getQtDesignerPluginInfo (cls)
	Provides Qt Designer with widget information.
Public Member Functions inherited from QePreFocalStation
	QePreFocalStation (QWidget *parent=Q_NULLPTR)
	Constructor that is used to set a parent relationship with.
Configuration	getCurrentConfiguration ()
	Gets the current configuration of the Pre FocalStation.
double	getA1B1ScienceFieldRadius ()
	Gets the A1/B1 Science Field Radius.
double	getBetaWarningAngle ()
	Gets the beta angle used to define warning zone.
double	getPfsRadius ()
	Gets the of PFS plane.
ElementName	getPrioritySB ()
	Gets the priority SB name.
double	getCurrentSAAzA ()
	Gets the value of the current azimuth coordinate the SA A has.
double	getCurrentSARadialA ()
	Gets the value of the current radial coordinate the SA A has.
double	getTargetSAAzA ()
	Gets the value of the target azimuth the SA A has.
double	getTargetSARadialA ()
	Gets the value of the target radial coordinate the SA A has.
QPointF	getCurrentBoxPosA ()
	Gets the position of the Sensor Box A (for testing purposes)
QPointF	getTargetBoxPosA ()
	Gets target position of the Sensor Box A (for testing purposes)
double	getCurrentSAAzB ()
	Gets the value of the current azimuth the SA B has.
double	getCurrentSARadialB ()
	Gets the value of the current radial coordinate the SA B has.
double	getTargetSAAzB ()
	Gets the value of the target azimuth the SA B has.
double	getTargetSARadialB ()
	Gets the value of the target radial coordinate the SA B has.
QPointF	getCurrentBoxPosB ()
	Gets the position of the Sensor Box B (for testing purposes)
QPointF	getTargetBoxPosB ()
	Gets target position of the Sensor Box B (for testing purposes)
double	getCurrentSAAzC ()
	Gets the value of the current azimuth the SA C has.
double	getCurrentSARadialC ()
	Gets the value of the current radial coordinate the SA C has.
double	getTargetSAAzC ()
	Gets the value of the target azimuth the SA C has.
double	getTargetSARadialC ()
	Gets the value of the target radial coordinate the SA C has.
QPointF	getCurrentBoxPosC ()
	Gets the position of the Sensor Box C (for testing purposes)
QPointF	getTargetBoxPosC ()
	Gets target position of the Sensor Box C (for testing purposes)
Public Member Functions inherited from QeRadialItemPlot
	QeRadialItemPlot (QWidget *parent=Q_NULLPTR)
	Constructor that is used to set a parent relationship with.
bool	getIsClockwise ()
	Gets the value the flag that determines if radial values change clockwise or counterclockwise.
bool	getDegRadNumericDisplay ()
	Returns the true if using radians to display numerical values.
bool	getShowGrid ()
	Returns the true if grid is displayed.
QPixmap	getBackgroundPixmap ()
	Returns background QPixmap that is stored in unique ptr.

Static Public Attributes
	model
	This property holds URI strings representing the model names with which this widget will get its data from.
	modelIndex = Qt.Property("QString", getModelIndex, setModelIndex, resetModelIndex)
	This property holds the index inside the model value that should be displayed.
	fgRole
	This property holds the foreground role.
	bgRole
	This property holds the background role.

Additional Inherited Members
Public Slots inherited from QePreFocalStation
void	setCurrentConfiguration (Configuration newConfiguration)
	Sets the value of the current configuration property.
void	setCurrentConfigurationInt (int configuration)
	Convinience method to allow setting PFS configuration using its integer representation.
void	setA1B1ScienceFieldRadius (double newValue)
	Sets the value of the A1/B1 Science Field Radius property.
void	setBetaWarningAngle (double newValue)
	Sets the value of the beta warning angle property.
void	setPfsRadius (double newValue)
	Sets the value of PFS radius.
void	setPrioritySB (ElementName newValue)
	Sets the priority Sensor Box.
void	changePFSSide (bool doReverse)
	Helper method to change the PFS widget view to PFS A or PFS B.
void	setCurrentSAAzA (double newValue)
	Sets the value of the current azimuth property.
void	setCurrentSARadialA (double newValue)
	Sets the value of the current radial coordinate of SA A.
void	setTargetSAAzA (double newValue)
	Sets the value of the target azimuth property.
void	setTargetSARadialA (double newValue)
	Sets the value of the target radial coordinate of SA A.
void	setCurrentSAAzB (double newValue)
	Sets the value of the current azimuth property.
void	setCurrentSARadialB (double newValue)
	Sets the value of the current radial coordinate of SA B.
void	setTargetSAAzB (double newValue)
	Sets the value of the target azimuth property.
void	setTargetSARadialB (double newValue)
	Sets the value of the target radial coordinate of SA B.
void	setCurrentSAAzC (double newValue)
	Sets the value of the current azimuth property.
void	setCurrentSARadialC (double newValue)
	Sets the value of the current radial coordinate of SA C.
void	setTargetSAAzC (double newValue)
	Sets the value of the target azimuth property.
void	setTargetSARadialC (double newValue)
	Sets the value of the current radial coordinate of SA C.
Public Slots inherited from QeRadialItemPlot
void	setIsClockwise (bool newValue)
	Changes the direction of radial values distribution.
void	setDegRadNumericDisplay (bool newValue)
	Changes the units used to display the values.
void	setShowGrid (bool newValue)
	Changes the grid visibility indicator.
void	updateBackground ()
	Updates the m_backgroundUpdateNeeded internal flag to signal a significant change was detect, and the cache needs to be rebuild.
Signals inherited from QePreFocalStation
void	currentConfigurationChanged (Configuration newConfiguration)
	Indicates that the current configuration has changed.
void	a1b1ScienceFieldRadiusChanged (double newValue)
	Indicates that A1/B1 Science Field Radius has changed.
void	betaWarningAngleChanged (double newValue)
	Indicates that warning angle has changed.
void	pfsRadiusChanged (double newValue)
	Indicates that PFS radius has changed.
void	prioritySBChanged (ElementName newValue)
	Indicates that priority SB has changed.
void	currentSAAzChangedA (double newValue)
	Indicates that the current azimuth value has changed.
void	currentSARadialChangedA (double newValue)
	Indicates that the current radial value has changed.
void	targetSAAzChangedA (double newValue)
	Indicates that the target azimuth value has changed.
void	targetSARadialChangedA (double newValue)
	Indicates that the target radial value has changed.
void	currentSAAzChangedB (double newValue)
	Indicates that the current azimuth value has changed.
void	currentSARadialChangedB (double newValue)
	Indicates that the current radial value has changed.
void	targetSAAzChangedB (double newValue)
	Indicates that the target azimuth value has changed.
void	targetSARadialChangedB (double newValue)
	Indicates that the target radial value has changed.
void	currentSAAzChangedC (double newValue)
	Indicates that the current azimuth value has changed.
void	currentSARadialChangedC (double newValue)
	Indicates that the current radial value has changed.
void	targetSAAzChangedC (double newValue)
	Indicates that the target azimuth value has changed.
void	targetSARadialChangedC (double newValue)
	Indicates that the target radial value has changed.
Signals inherited from QeRadialItemPlot
void	isClockwiseChanged (bool newValue)
	Indicates that the direction of values distribution chanegd.
void	degRadNumericDisplayTriggered (bool newValue)
	Indicates that the numerical unit representation has changed.
void	showGridChanged (bool newValue)
	Indicates that the numerical unit representation has changed.
Protected Member Functions inherited from QePreFocalStation
void	paintEvent (QPaintEvent *event) override
	Overrides QWidget::paintEvent to implement its own rendering instructions.
void	paintDartBoard (QPainter *painter) override
	Uses a QPainter to draw the dartboard (mostly static) background.
void	paintSA (QPainter *painter, QPointF *positionPoint, double azimuth, double radial, Role roleName, ElementName sbName)
	Paints Sensor Arm according to given coordinates.
void	updateSBColorAndText (Role roleName, QColor elementColor, QPen &currentPen, QString &sbName)
	Updates Sensor Box color and letter.
QColor	calculateColor (QColor baseColor, Role roleName)
	Calculates target color and current color when the widget is disabled.
PositionCheck	checkForCollisions (ElementName elementName)
	Using m_collisionAngle and m_betaWarningAngle, calculates if current position of a SensorBox is in safety ranges and returns enum value based on which the SAs are changed as follows: If the SB is in a collision zone, it's Sensor Arm is coloured red, if the SB is in a warning zone, it's Sensor Arm is coloured orange.
void	drawM6ArmShadow (QPainter *painter, Configuration config)
	Draws mirror arm shadow (when A3/B3 configuration)
Protected Member Functions inherited from QeRadialItemPlot
void	changeEvent (QEvent *event) override
	Overrides QWidget::changeEvent to catch when certain QWidget's properties has changed.
void	resizeEvent (QResizeEvent *event) override
	Overrides QWidget::resizeEvent to catch when the size has changed.
void	cacheBackground (QPainter *painter)
	Stores in a pointer the new background cache.
void	setDirectionIndicatorSigns (QString vertical, QString horizontal)
	Sets indicators' symbols for directions arrows painted in top right corner.
void	setDirectionIndicatorVisible (bool isVisible)
	Sets directions indicator (painted in the top right corner of the widget) visible.
void	drawValues (QPainter *painter)
	Draws numeric values around the radial plot in a desired direction (eiher clockwise or counterclockwise)
Properties inherited from QePreFocalStation
Configuration	currentConfiguration
	Current configuration of the PFS.
double	a1b1ScienceFieldRadius
	Science field radius in A1/B1 configuration.
double	betaWarningAngle
	Beta angle which creates a warning zone to signalize 2 SAs are too close each other.
double	pfsRadius
	Radius of the PFS plane.
ElementName	prioritySB
	The Sensor Box that has a priority over other SBs.
double	currentSAAz_A
	Azimuth coordinate of the current position in radians.
double	currentSARadial_A
	Radial coordinate of the current position in radians.
double	targetSAAz_A
	Azimuth coordinate of the target position in radians.
double	targetSARadial_A
	Radial coordinate of the target position in radians.
double	currentSAAz_B
	Azimuth coordinate of the current position in radians.
double	currentSARadial_B
	Azimuth coordinate of the current position in radians.
double	targetSAAz_B
	X coordinate of Sensor Arm B target position.
double	targetSARadial_B
	Y coordinate of Sensor Arm B target position.
double	currentSAAz_C
	Azimuth coordinate of the current position in radians.
double	currentSARadial_C
	Azimuth coordinate of the current position in radians.
double	targetSAAz_C
	X coordinate of Sensor Arm C target position.
double	targetSARadial_C
	Y coordinate of Sensor Arm C target position.
Properties inherited from QeRadialItemPlot
bool	isClockwise
	Flag that determines if radial coordinates of the plot change clockwise (true) or counterclockwise (false) The property is true by default (clockwise)
bool	degRadNumericDisplay
	Degrees/Radians numerical indicators representation (0 - Degrees, 1 - Radians)
bool	showGrid
	Show/hide grid.

Detailed Description

Taurus based widget for QePreFocalStation, capable of connecting through taurus plugins to control system and services.

The PreFocalStation is a custom wiget that render current and target positions of Sensor Boxes and their Arms (marked as A, B and C).

The position is emphasised as azymuth that reflects position of a Sensor Box on outer circle of Focal Plane and radial value that defines distance between the Sensor Arm tip and the centre of the Focal Plane. Azymuth values start at the top of the Plane and increase clock-wise. Radial values start from th centre of the Plane (point 0.0) and increase radially outward.

Each A, B and C pair of Sensor Box and Sensor Arm set has dedicated color. The colors of target positions, are lighter versions of current positions color for A, B and C respectively.

Sensor Arms are colored magenta when they're inside Science field (the most inner circle). Sensor Arms that are too close each other are colored orange. Colliding Sensor Arms are colored red.

See also

TaurusBaseWidget https://taurus-scada.org/devel/api/taurus.qt.qtgui.base-TaurusBaseWidget.html

Copyright

ESO - European Southern Observatory

Constructor & Destructor Documentation

__init__()

taurus.taurusprefocalstation.TaurusPreFocalStation.__init__	(		self,
		Qt.QWidget	parent = None,
			designMode = False )

Initializes the object with defaults values, and obtains the appropiate controller.

Parameters

parent	Parent Widget.
designMode	Indicates if the widget is started within the Qt Designer

Member Function Documentation

controller()

TaurusBaseController taurus.taurusprefocalstation.TaurusPreFocalStation.controller

(

self

)

Returns the controller object for this widget.

See also

TaurusBaseController

Returns

TaurusBaseController controller of the widget

getQtDesignerPluginInfo()

taurus.taurusprefocalstation.TaurusPreFocalStation.getQtDesignerPluginInfo

(

cls

)

Provides Qt Designer with widget information.

Return: dict Dictionary with values for keys: icon, module, container, tool_tip and xml.

Member Data Documentation

bgRole

taurus.taurusprefocalstation.TaurusPreFocalStation.bgRole

static

Initial value:

=  Qt.Property(
        "QString", getBgRole, setBgRole, resetBgRole, doc="background role"
    )

This property holds the background role.

Valid values are None, "quality", "state"

Access functions:

• getBgRole
• setBgRole
• resetBgRole

fgRole

taurus.taurusprefocalstation.TaurusPreFocalStation.fgRole

static

Initial value:

=  Qt.Property(
        "QString", getFgRole, setFgRole, resetFgRole, doc="foreground role"
    )

This property holds the foreground role.

Valid values are:

• None - no value is displayed
• "value" - the value is displayed
• "w_value" - the write value is displayed

Access functions:

• getFgRole
• setFgRole
• resetFgRole

model

taurus.taurusprefocalstation.TaurusPreFocalStation.model

static

Initial value:

=  Qt.Property(
        "QString", TaurusBaseWidget.getModel, setModel, TaurusBaseWidget.resetModel
    )

This property holds URI strings representing the model names with which this widget will get its data from.

The model is supposed to be a list of models. Each element of the list relates to current/target coordinates of Sensor Arms A, B and C. It is very important to keep in mind the order in which the models should be passed:

| Index | Affected property |
|-------|-------------------|
| 0     | current Az A      |
| 1     | current Radial A  |
| 2     | target Az A       |
| 3     | target Radial A   |
| 4     | current Az B      |
| 5     | current Radial B  |
| 6     | target Az B       |
| 7     | target Radial B   |
| 8     | current Az C      |
| 9     | current Radial C  |
| 10    | target Az C       |
| 11    | target Radial C   |

Access functions:

• TaurusBaseWidget.getModel
• setModel
• TaurusBaseWidget.resetModel

modelIndex

taurus.taurusprefocalstation.TaurusPreFocalStation.modelIndex = Qt.Property("QString", getModelIndex, setModelIndex, resetModelIndex)

static

This property holds the index inside the model value that should be displayed.

Access functions:

• getModelIndex
• setModelIndex
• resetModelIndex

---

The documentation for this class was generated from the following file:

• widgets/taurus/src/elt/cut/widgets/taurus/taurusprefocalstation.py
